High Temperature 125C Rated UL Approval Marked Customized TPU Cable

Name: High Temperature 125C Rated UL Approval Marked Customized TPU Cable
Brand: Halogen Free Cable
Price: 0.35 USD

Quality High Temperature 125C Rated UL Approval Marked Customized TPU Cable wholesale

Brand Name : Halogen Free Cable

Model Number : TH-880618

Certification : UL, CSA, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD0.35~0.59 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10,000,000 meters monthly

Delivery Time : 5~10 working days

Packaging Details : 915 meters per carton, subject to the customized dimensions of product.

Type : Customized Cable

Feature : High temperature resistant

Rated : 125C degree, 30V

Conductor : PVC Insulated

Jacket : TPU

Standard : 100% RoHS Compliant

Contact Now

High Temperature 125C Rated UL Approval Marked Customized TPU Cable

Customized Cable is the most featured products of Tongheng business. High Temperature 125C Rated UL Approval Marked Customized TPU Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. High Temperature 125C Rated UL Approval Marked Customized TPU Cable is one of the excellent example. Its remarkable advantage is high temperature resistant.

Here below is the product properties:

Feature: high temperature resistant

Rated: 125C degree, 30V

Approval type: UL, CUL

Spec to be customized per customers request.

Product parameters:

TPU Cable	Conductor Structure	Insulation Thickness	Nominal Diameter	Screened Coverage	Sheath Thickness	Overall Diameter	Conductor Resistance
TPU Cable	AWG	mm	mm	%	mm	mm	Ω/KM(20℃)
2C	30	0.38	1.10	≥65	1.15	5.00	381.00
2C	28	0.38	1.20	≥65	1.15	5.30	239.00
2C	26	0.38	1.30	≥65	1.15	5.40	150.00
2C	24	0.38	1.40	≥65	1.15	5.70	94.20
2C	22	0.38	1.60	≥65	1.15	6.10	59.40
2C	20	0.38	1.80	≥65	1.15	6.50	36.70
2C	18	0.38	2.10	≥65	1.15	7.10	23.20
2C	16	0.38	2.40	≥65	1.15	7.70	14.60
3C	30	0.38	1.10	≥65	1.15	5.30	381.00
3C	28	0.38	1.20	≥65	1.15	5.50	239.00
3C	26	0.38	1.30	≥65	1.15	5.70	150.00
3C	24	0.38	1.40	≥65	1.15	5.90	94.20
3C	22	0.38	1.60	≥65	1.15	6.50	59.40
3C	20	0.38	1.80	≥65	1.15	6.80	36.70
3C	18	0.38	2.10	≥65	1.15	7.40	23.20
4C	30	0.38	1.10	≥65	1.15	5.50	381.00
4C	28	0.38	1.20	≥65	1.15	5.70	239.00
4C	26	0.38	1.30	≥65	1.15	6.00	150.00
4C	24	0.38	1.40	≥65	1.15	6.40	94.20
4C	22	0.38	1.60	≥65	1.15	7.70	59.40
4C	20	0.38	1.80	≥65	1.15	7.20	36.70
5C	30	0.38	1.10	≥65	1.15	5.70	381.00
5C	28	0.38	1.20	≥65	1.15	5.80	239.00
5C	26	0.38	1.30	≥65	1.15	6.00	150.00
5C	24	0.38	1.40	≥65	1.15	6.40	94.20
5C	22	0.38	1.60	≥65	1.15	7.00	59.40
6C	30	0.38	1.10	≥65	1.15	5.90	381.00
6C	28	0.38	1.20	≥65	1.15	6.30	239.00
6C	26	0.38	1.30	≥65	1.15	6.70	150.00
6C	24	0.38	1.40	≥65	1.15	7.00	94.20

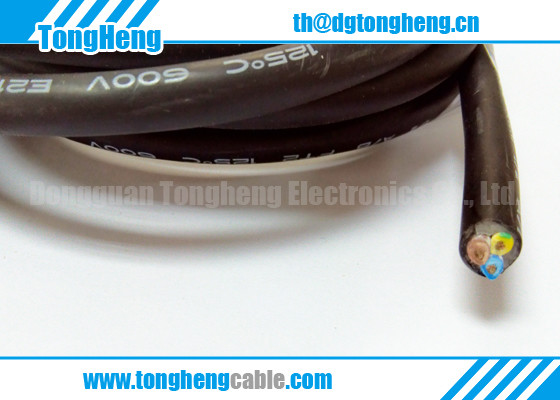

Product image:

High Temperature 125C Rated UL Approval Marked Customized TPU Cable

High Temperature 125C Rated UL Approval Marked Customized TPU Cable

High Temperature 125C Rated UL Approval Marked Customized TPU Cable

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us (Contact Us) for customized ones immediately if you have the different requirement.
